EUR 141.17 EUR 114.77
SKU
KN-KSOV-212-230

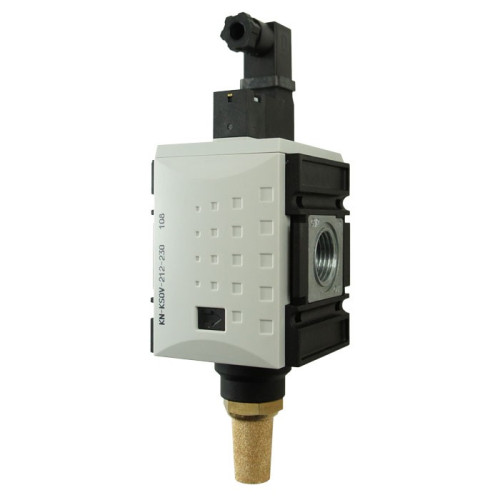

Closing Valve NC 3/2 230V for Blocks 1/2 ″
Write Your Own Review
The closing valve is mounted in the installation when there is a risk, for example, of damage to the end device by compressed air at the time of power failure. In such a situation, the valve will automatically cut off the air supply and vent the system.
Technical data- Connection: 1/2 ″
- Outlet: 1/2 ″
- Type: shut-off valve
- Medium: compressed air and inert gases
- Ambient temperature: up to 50 ° C
- Supply pressure: 2 ~ 10 bar
- Voltage: 230V / 50 Hz
- Power: 1 ~ 2.5 W (DC), 3 VA (AC 50 Hz)
- Nominal flow: 4500 l / min (Pe = 6 bar Δp = 1 bar)
- Protection classes: IP 65 (DIN 40050)
- Mounting: bracket, wall mounting
- Weight: 0.4 kg
| SKU | KN-KSOV-212-230 |
|---|---|
| Producent | Pneumatig |
| connection | G 1/2″ |
| nominal flow at 7 bar [l/min] | 4500 |
| pressure range (two numbers separated by a dash in bar) [bar] | 2 - 10 |
| temperature range (two numbers with hyphen) [°C] | 0 - 50 |
| max. pressure [bar]. | 10 |
| voltage (table) [V]. | 230 |
| ambient temperature [°C] | h is 50 ° C |
