Sumake
SKU: ST-7784

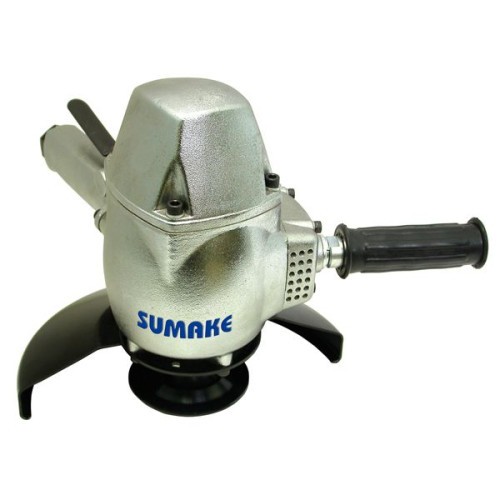

Sumake ST-7784 End Grinder 230mm

In stock Dispatch: 1-2 business days
EUR 676.65 EUR 550.12
SKU
ST-7784
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days
Sumake ST-7784 Face Grinder 230 mm
air connection G 1/2″
Supply hose diameter [mm]. 18
air consumption [l/min] 566
grinding disc size [mm] 230
speed [rpm]. 5900
type front

Sumake ST-7784 End Grinder 230mm

Professional face grinder adapted to work in difficult conditions with direct drive of the working disc.

Technical data:
  • Power: 4400 W
  • Dial diameter: 230 mm
  • Spindle: 5/8 ″ × 110 NC
  • No load speed: 5900 r.p.m.
  • Weight: 5.8 kg
  • Length: 279 mm
  • Air connection: 1/2 ″
  • Air consumption: 566 l / min
  • Supply hose: 18mm
Advantages of the device:
  • The reinforced and double bearing spindle ensures long tool life.
  • The torque reaction at start-up is minimized
  • Favorable power-to-weight ratio
  • High performance guaranteed
  • This type of grinder is designed for the metal and shipbuilding industries and where there is a need to grind large surfaces.
  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUST-7784
ProducentSumake
dimensions (length) [mm]279
air consumption [l/min]566
compositeNo
Supply hose diameter [mm].18
air connectionG 1/2″
speed [rpm].5900
typefront
grinding disc size [mm]230
More Information
SKUST-7784
ProducentSumake
dimensions (length) [mm]279
air consumption [l/min]566
compositeNo
Supply hose diameter [mm].18
air connectionG 1/2″
speed [rpm].5900
typefront
grinding disc size [mm]230
