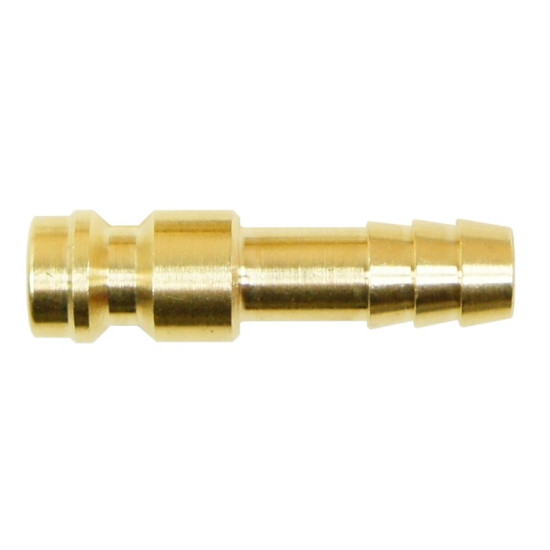

A TYPE21 quick-coupler tip for a 6 mm hose
A TYPE21 quick-coupler tip for a 6 mm hose

.Rectus

SKU: SZ-M21-06

A TYPE21 quick-coupler tip for a 6 mm hose

Dostępny Wysyłka: 1-2 dni robocze

Be the first to review this product

EUR 3.90 EUR 3.17

SKU

SZ-M21-06

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

Quick Coupling Tip for 6 mm Hose

Skip to the end of the images gallery

A TYPE21 quick-coupler tip for a 6 mm hose

Skip to the beginning of the images gallery

pressure range (two numbers separated by a dash in bar) [bar] 0 - 35

DN 5

hose Ø 6 mm

material brass

rectus series 21

A TYPE21 quick-coupler tip for a 6 mm hose

Quick coupler type: TYP21 NW 5
Hose: 6mm
Material: brass
Temperature: 0 to +100 ° C
Installation: in any position
Working pressure: 0 - 35 bar

Quick couplings are present wherever it is required, for technical or safety reasons, to frequently disconnect parts of the pneumatic circuit. The quick-disconnect unit enables these operations to be carried out quickly and without loss of pressure in the system.

kompaktowa budowa
wysoka wydajność przepływu
szeroki zakres ciśnień
niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKU	SZ-M21-06
Producent	.Rectus
rectus series	21
DN	5
hose	Ø 6 mm
material	brass
pressure range (two numbers separated by a dash in bar) [bar]	0 - 35

Download

Download dimensions

More Information
SKU	SZ-M21-06
Producent	.Rectus
rectus series	21
DN	5
hose	Ø 6 mm
material	brass
pressure range (two numbers separated by a dash in bar) [bar]	0 - 35

Download dimensions
