Sumake
SKU: ST-5149

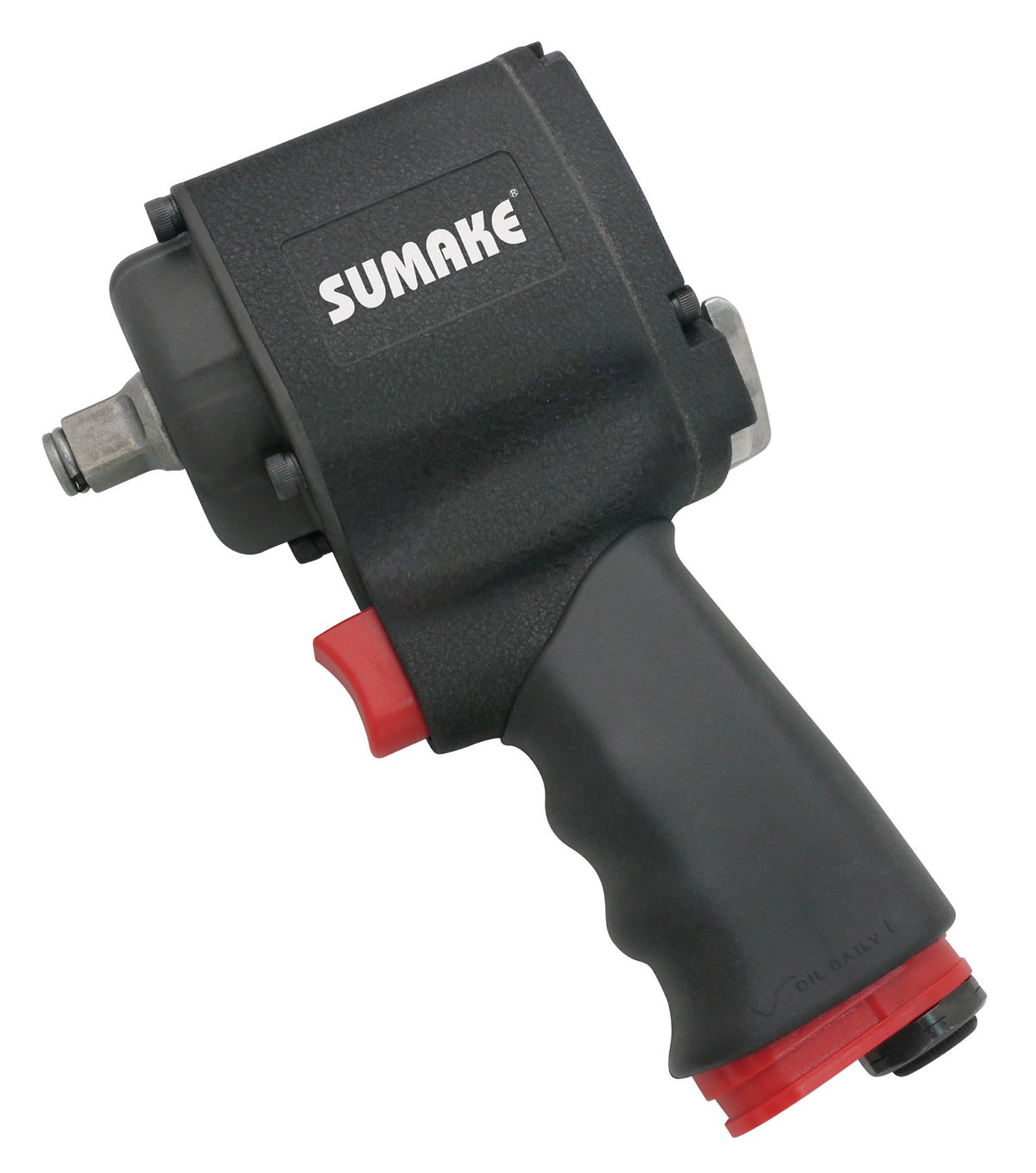

Mini pneumatic wrench ST-5149 - 678Nm

In stock Dispatch: 1-2 business days
EUR 281.67 EUR 229.00
SKU
ST-5149
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days
Pneumatic wrench in mini version (jumbo hammer), max. torque 678Nm.
air connection G 1/4″
working pressure [bar] (one numerical value) 6.2
air consumption [l/min] 480
impact jumbo hammer
mandrel 1/2″
speed [rpm]. 11000

Mini pneumatic wrench ST-5149 - 678Nm

Technical data:
  • Chuck size: 1/2 ″
  • Max. torque: 678Nm
  • No-load speed: 11,000 r.p.m.
  • Total length: 99 mm
  • Average air consumption: 480 l / min
  • Air connection: 1/4 ″
  • Weight: 1.35 kg

The key has a durable housing made of reinforced aluminum. The exhaust air opening is located at the bottom of the handle. The jumbo hammer mechanism ensures high torque which is achievable almost immediately after start-up. There is a convenient switch on the back of the key to control the speed and direction of rotation.

  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUST-5149
ProducentSumake
torque [Nm].678
mandrel1/2″
impactjumbo hammer
dimensions (length) [mm]99
air consumption [l/min]480
working pressure [bar] (one numerical value)6.2
compositeNo
air connectionG 1/4″
speed [rpm].11000

Download

No downloads...
More Information
SKUST-5149
ProducentSumake
torque [Nm].678
mandrel1/2″
impactjumbo hammer
dimensions (length) [mm]99
air consumption [l/min]480
working pressure [bar] (one numerical value)6.2
compositeNo
air connectionG 1/4″
speed [rpm].11000
No downloads...
