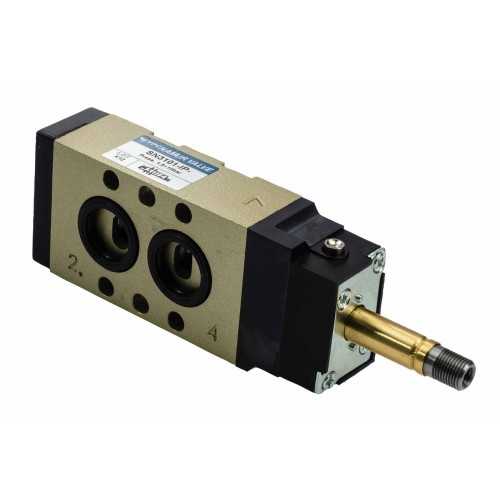

Zawór NAMUR SN4101

Name: Zawór NAMUR SN4101
Brand: YPC
SKU: YPC-SN4101-IP
Price: 75.82 EUR

Dostępny Wysyłka: 1-2 dni robocze

EUR 75.82 EUR 61.64

SKU

YPC-SN4101-IP

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

Zawór NAMUR SN4101

function 5/2 monostable

connection G 1/4″

max. pressure [bar]. 10

pressure range (two numbers separated by a dash in bar) [bar] 1.5 - 10

nominal flow at 7 bar [l/min] 1800

medium compressed air, inert gases

Dane techniczne:

Budowa:

Dane techniczne

More Information
SKU	YPC-SN4101-IP
Producent	YPC
dimensions (width) [mm].	dreißig
function	5/2 monostable
connection	G 1/4″
return method	air + spring
nominal flow at 7 bar [l/min]	1800
pressure range (two numbers separated by a dash in bar) [bar]	1.5 - 10
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	10
medium	compressed air, inert gases
type of control	internal remote control
manual override	button
response time (5 bar) [ms].	30
operating frequency [Hz].	5

More Information
SKU	YPC-SN4101-IP
Producent	YPC
dimensions (width) [mm].	dreißig
function	5/2 monostable
connection	G 1/4″
return method	air + spring
nominal flow at 7 bar [l/min]	1800
pressure range (two numbers separated by a dash in bar) [bar]	1.5 - 10
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	10
medium	compressed air, inert gases
type of control	internal remote control
manual override	button
response time (5 bar) [ms].	30
operating frequency [Hz].	5
