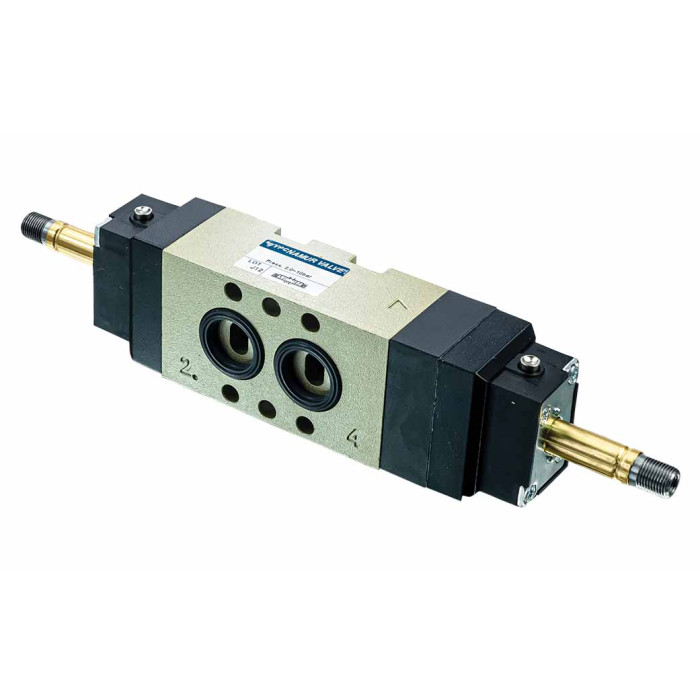

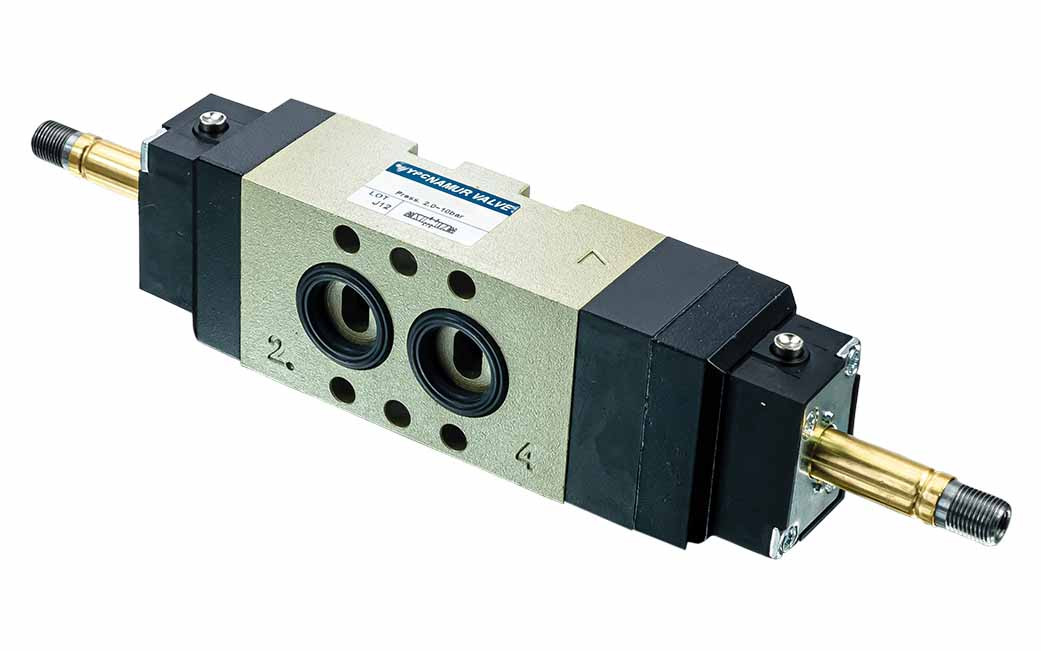

NAMUR SN4200 valve

Name: NAMUR SN4200 valve
Brand: YPC
SKU: YPC-SN4200-IP
Price: 101.52 EUR

Dostępny Wysyłka: 1-2 dni robocze

EUR 101.52 EUR 82.54

SKU

YPC-SN4200-IP

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

NAMUR SN4200 valve

function 5/2 bistable

connection G 1/4″

max. pressure [bar]. 10

pressure range (two numbers separated by a dash in bar) [bar] 1.5 - 10

nominal flow at 7 bar [l/min] 1800

medium compressed air, inert gases

Technical data:

Construction:

Dane techniczne

More Information
SKU	YPC-SN4200-IP
Producent	YPC
dimensions (width) [mm].	dreißig
function	5/2 bistable
connection	G 1/4″
return method	no
nominal flow at 7 bar [l/min]	1800
pressure range (two numbers separated by a dash in bar) [bar]	1.5 - 10
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	10
medium	compressed air, inert gases
type of control	internal remote control
manual override	button
response time (5 bar) [ms].	30
operating frequency [Hz].	5

Download dimensions

More Information
SKU	YPC-SN4200-IP
Producent	YPC
dimensions (width) [mm].	dreißig
function	5/2 bistable
connection	G 1/4″
return method	no
nominal flow at 7 bar [l/min]	1800
pressure range (two numbers separated by a dash in bar) [bar]	1.5 - 10
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	10
medium	compressed air, inert gases
type of control	internal remote control
manual override	button
response time (5 bar) [ms].	30
operating frequency [Hz].	5

Download dimensions
