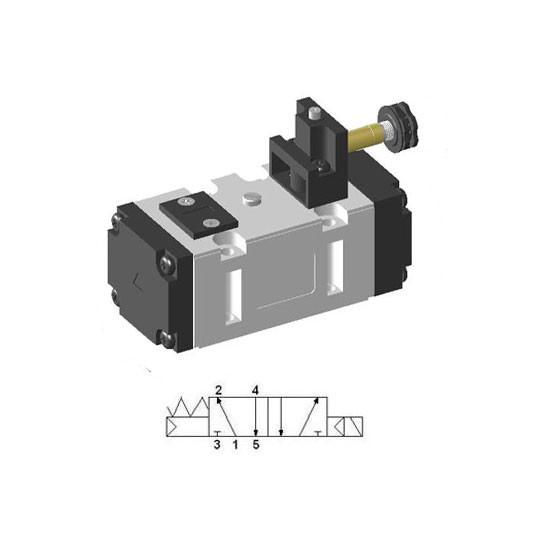

ISO SIV511 valve
Technical data:
- Function: 5/2 monostable
- Way of return: air + spring
- Compliance with: ISO-2
- Width: 50 mm
- Flow: 3500 l / min (5 bar)
- Medium: compressed air and inert gases
- Pressure: 1.5 ~ 10 bar
- Temperature range: 5 ~ 60 ° C
- Response time: 35 ms (5 bar)
- Working frequency: 3 c / sec
- Lubrication: Recommended (use ISO VG32 #)
- Manual override: button
- Valve housing: aluminum
- Coil body: aluminum
- Seals: NBR rubber
- Spring: stainless steel
- Cover: die-cast zinc
- Pilot parts: glass fiber reinforced nylon
- Armature: stainless steel
- Armature seal: elastomer
Replacement: FESTO MFH-5/2-D-2-C
- kompaktowa budowa
- wysoka wydajność przepływu
- szeroki zakres ciśnień
- niezawodna praca w automatyce przemysłowej
