EUR 41.59 EUR 33.81
SKU
YPC-FS3101

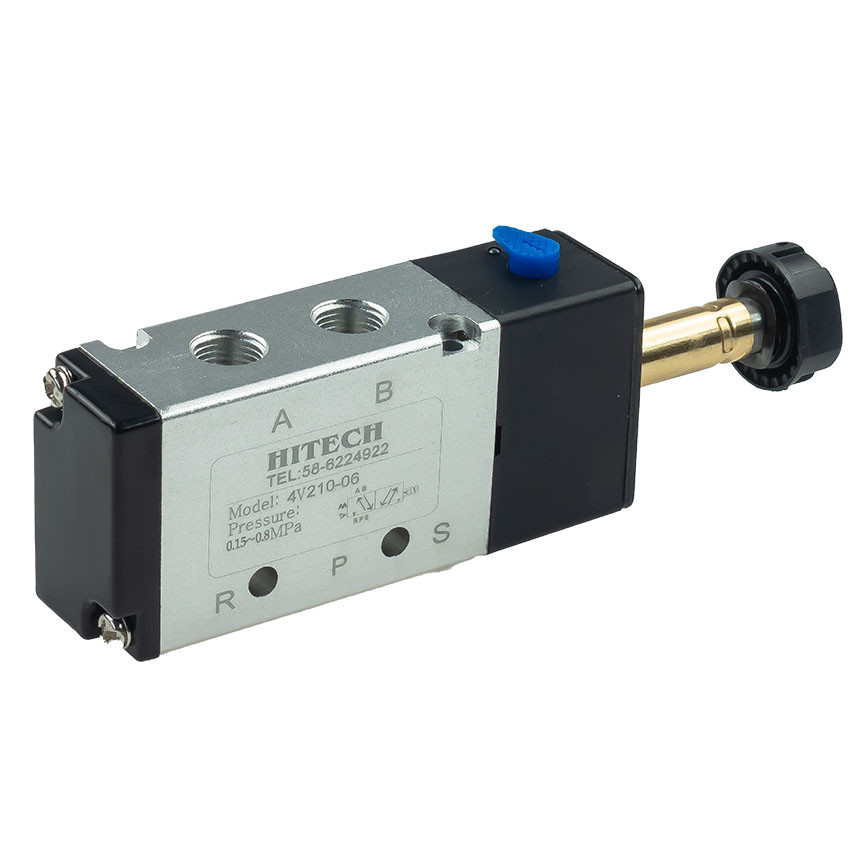

Solenoid Valve FS4101 HITECH SOLENOID VALVE 5/2 1/4”

Technical data:
  • Function: 5/2 monostable
  • Connection: 1/4 ″
  • Way of return: air + spring
  • Width: 26 mm
  • Flow: 1000 l / min (5 bar)
  • Medium: compressed air and inert gases
  • Pressure: 1.5 ~ 10 bar
  • Temperature range: 5 ~ 60 ° C
  • Response time: 25 ms (5 bar)
  • Working frequency: 5 c / sec
  • Lubrication: use ISO VG32 #
  • Manual override: button
Construction:
  • Valve housing: aluminum
  • Coil body: aluminum
  • Seals: NBR rubber
  • Spring: stainless steel
  • Cover: die-cast zinc
  • Pilot parts: glass fiber reinforced nylon
  • Armature: stainless steel
  • Armature seal: elastomer

Replacement of the FESTO MFH-5-1 / 4, MFH-5-1 / 4-B

Replacement for REXROTH 572747

More Information
SKUYPC-FS3101
ProducentHi-Tech
dimensions (width) [mm].26
function5/2 monostable
connectionG 1/8″
return methodair + spring
nominal flow at 7 bar [l/min]1000
pressure range (two numbers separated by a dash in bar) [bar]1.5 - 10
temperature range (two numbers with hyphen) [°C]5 - 60
max. pressure [bar].10
mediumcompressed air, inert gases
type of controlinternal remote control
manual overridebutton
response time (5 bar) [ms].25
operating frequency [Hz].5
Equivalent passage area [mm²]19
