Mechanical valve 3/2 1/4 ″ push-in

Name: Mechanical valve 3/2 1/4 ″ push-in
Brand: YPC
SKU: YPC-RLV460-PU
Price: 31.86 EUR

Dostępny Wysyłka: 1-2 dni robocze

EUR 31.86 EUR 25.90

SKU

YPC-RLV460-PU

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

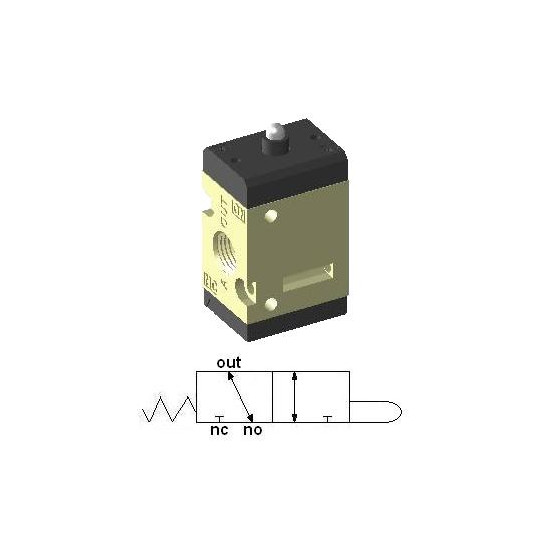

3/2 1/4 "Mechanical Valve

function 3/2

connection G 1/4″

max. pressure [bar]. 8

pressure range (two numbers separated by a dash in bar) [bar] 0 - 8

nominal flow at 7 bar [l/min] 950

temperature range (two numbers with hyphen) [°C] 5 - 60

Technical data:

Construction:

Dane techniczne

More Information
SKU	YPC-RLV460-PU
Producent	YPC
dimensions (width) [mm].	26,5
function	3/2
connection	G 1/4″
return method	spring
nominal flow at 7 bar [l/min]	950
pressure range (two numbers separated by a dash in bar) [bar]	0 - 8
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	8

Download dimensions

More Information
SKU	YPC-RLV460-PU
Producent	YPC
dimensions (width) [mm].	26,5
function	3/2
connection	G 1/4″
return method	spring
nominal flow at 7 bar [l/min]	950
pressure range (two numbers separated by a dash in bar) [bar]	0 - 8
temperature range (two numbers with hyphen) [°C]	5 - 60
max. pressure [bar].	8

Download dimensions
