YPC
SKU: YPC-SIP220

ISO SIP220 pneumatic valve

In stock Dispatch: 1-2 business days
EUR 79.45 EUR 64.59
SKU
YPC-SIP220
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days

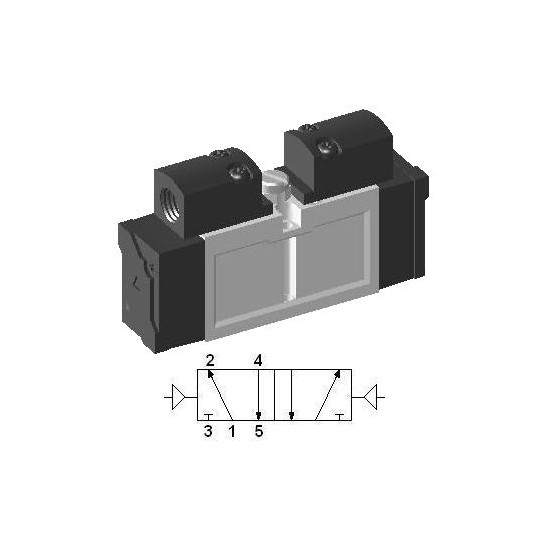

ISO SIP220 pneumatic valve
function 5/2 bistable
max. pressure [bar]. 10
pressure range (two numbers separated by a dash in bar) [bar] 1.5 - 10
nominal flow at 7 bar [l/min] 700
temperature range (two numbers with hyphen) [°C] 5 - 60
design size ISO-0 18 mm

ISO SIP220 pneumatic valve

Technical data:
  • Function: 5/2 bistable
  • Return method: none
  • Compliance with: ISO-0 15407-1 / VDMA 24563
  • Connection for valve actuation: 1/8 ″
  • Width: 18 mm
  • Flow: 700 l / min (5 bar)
  • Medium: compressed air and inert gases
  • Pressure: 1.5 ~ 10 bar
  • Temperature range: 5 ~ 60 ° C
  • Response time: 25 ms (5 bar)
  • Working frequency: 5 c / sec
  • Lubrication: use ISO VG32 #
Construction:
  • Valve housing: aluminum
  • Coil body: aluminum
  • Seals: NBR rubber
  • Spring: stainless steel
  • Cover: die-cast zinc
  • Pilot parts: glass fiber reinforced nylon
  • Armature: stainless steel
  • Armature seal: stainless steel

  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUYPC-SIP220
ProducentYPC
dimensions (width) [mm].18
function5/2 bistable
design sizeISO-0 18 mm
return methodno
nominal flow at 7 bar [l/min]700
pressure range (two numbers separated by a dash in bar) [bar]1.5 - 10
temperature range (two numbers with hyphen) [°C]5 - 60
max. pressure [bar].10
response time (5 bar) [ms].25
operating frequency [Hz].5
More Information
SKUYPC-SIP220
ProducentYPC
dimensions (width) [mm].18
function5/2 bistable
design sizeISO-0 18 mm
return methodno
nominal flow at 7 bar [l/min]700
pressure range (two numbers separated by a dash in bar) [bar]1.5 - 10
temperature range (two numbers with hyphen) [°C]5 - 60
max. pressure [bar].10
response time (5 bar) [ms].25
operating frequency [Hz].5
