CH 032 X 080 actuator

Name: CH 032 X 080 actuator
Brand: Pneumatig
SKU: C-H-032-0080
Price: 66.16 EUR

Dostępny Wysyłka: 1-2 dni robocze

EUR 66.16 EUR 53.79

SKU

C-H-032-0080

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

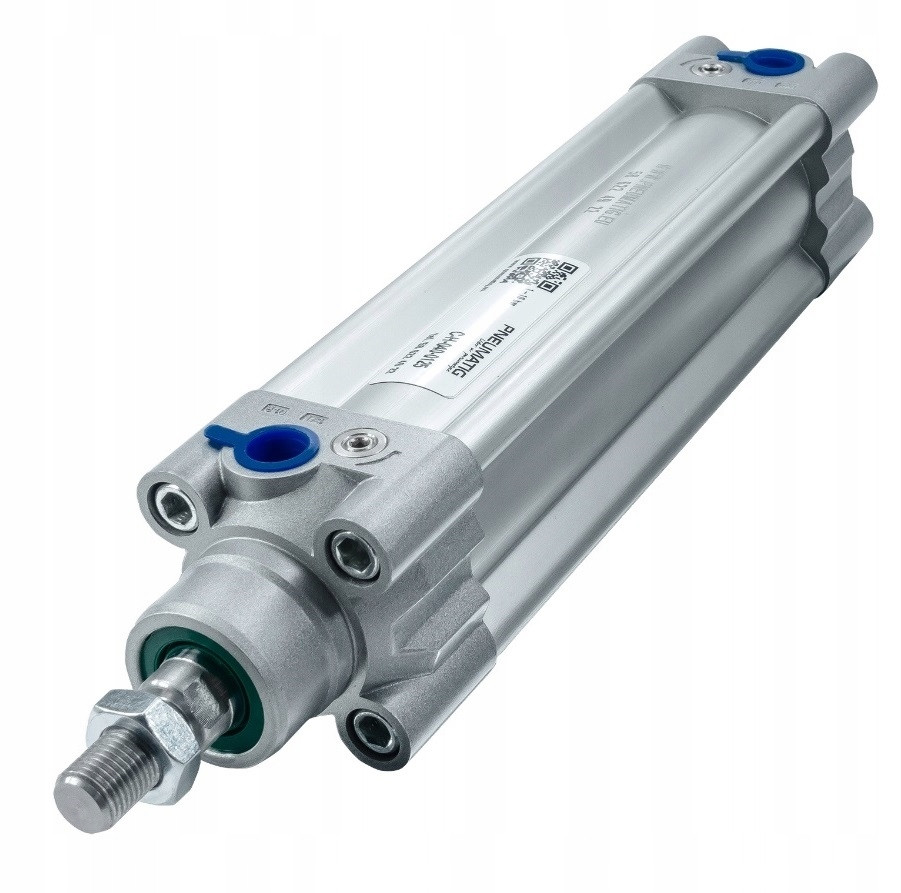

CH 32 x 80 actuator

connection G 1/8″

pressure range (two numbers separated by a dash in bar) [bar] 1 - 10

temperature range (two numbers with hyphen) [°C] -10 - 70

stroke of actuator [mm] 80

piston diameter [mm] 32

action double-sided

The actuator is equipped with pneumatic cushioning and a magnetic ring, thanks to which it can cooperate with the piston position sensor .

Dane techniczne

More Information
SKU	C-H-032-0080
Producent	Pneumatig
piston diameter [mm]	32
stroke of actuator [mm]	80
connection	G 1/8″
action	double-sided
pressure range (two numbers separated by a dash in bar) [bar]	1 - 10
temperature range (two numbers with hyphen) [°C]	-10 - 70
body	anodized aluminium
covers	anodized aluminium
piston rod	chromium-plated steel
seals	polyurethane + NBR
amortization	pneumatic

3D Model (STEP)

Download dimensions

More Information
SKU	C-H-032-0080
Producent	Pneumatig
piston diameter [mm]	32
stroke of actuator [mm]	80
connection	G 1/8″
action	double-sided
pressure range (two numbers separated by a dash in bar) [bar]	1 - 10
temperature range (two numbers with hyphen) [°C]	-10 - 70
body	anodized aluminium
covers	anodized aluminium
piston rod	chromium-plated steel
seals	polyurethane + NBR
amortization	pneumatic

3D Model (STEP)

Download dimensions

Write Your Own Review
