Pneumatig
SKU: C-D-040-0010M

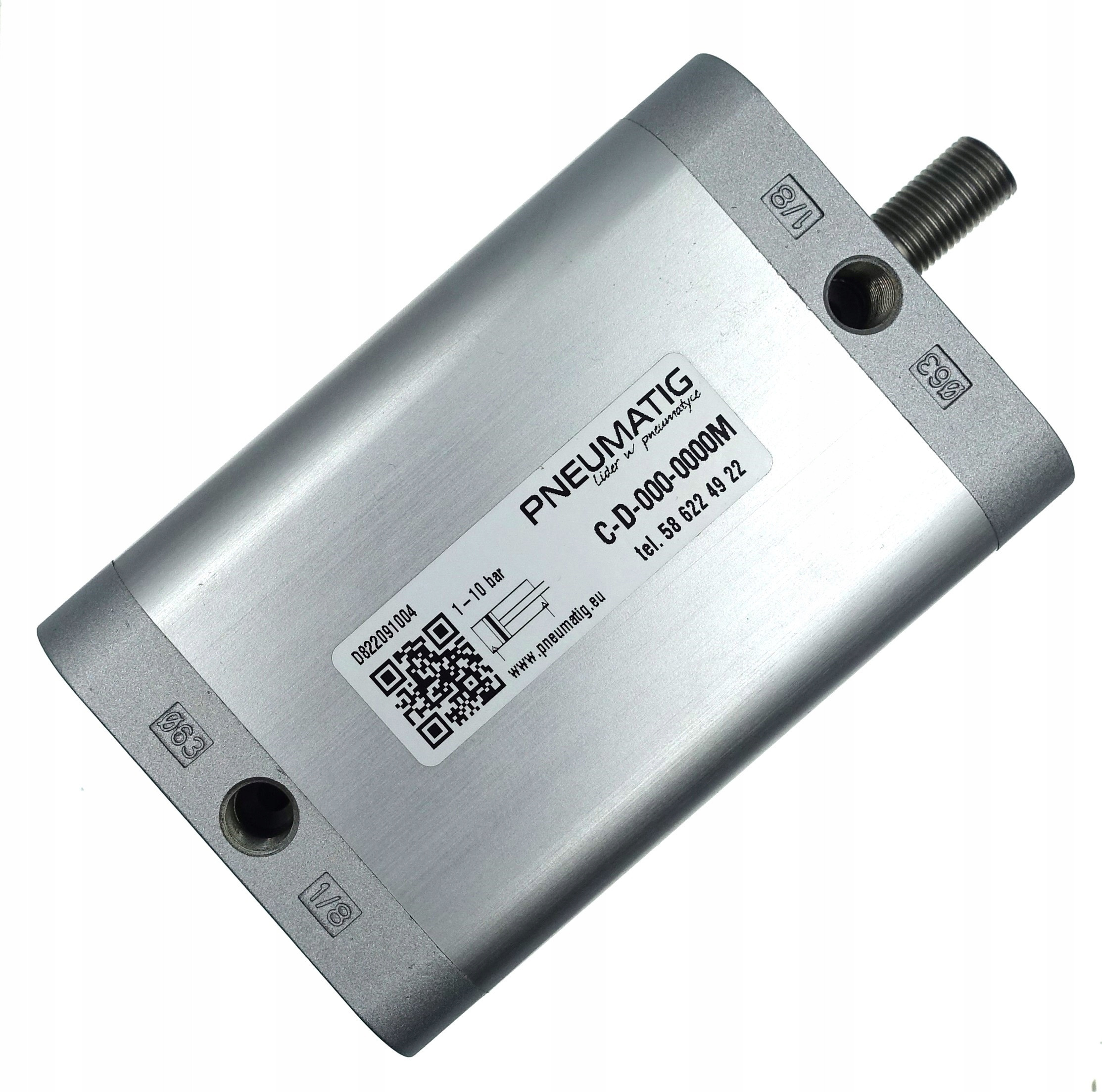

Compact cylinder DM 040 X 010 M

In stock Dispatch: 1-2 business days
EUR 64.56 EUR 52.49
SKU
C-D-040-0010M
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days
Compact cylinder DM 040 X 010 M
connection G 1/8″
pressure range (two numbers separated by a dash in bar) [bar] 1 - 10
temperature range (two numbers with hyphen) [°C] 0 - 80
stroke of actuator [mm] 10
piston diameter [mm] 40
action double-sided

Compact cylinder DM 040 X 010 M

  • Piston diameter: 40 mm
  • Actuator stroke: 10 mm
  • Operation: two-sided
  • Medium: filtered air (50 µ)
  • Max pressure: 10 bar
  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUC-D-040-0010M
ProducentPneumatig
piston diameter [mm]40
stroke of actuator [mm]10
connectionG 1/8″
actiondouble-sided
pressure range (two numbers separated by a dash in bar) [bar]1 - 10
temperature range (two numbers with hyphen) [°C]0 - 80
bodyanodized aluminium
coversaluminium casting
piston rodstainless steel AISI 303
sealspolyurethane + NBR
amortizationmechanical
More Information
SKUC-D-040-0010M
ProducentPneumatig
piston diameter [mm]40
stroke of actuator [mm]10
connectionG 1/8″
actiondouble-sided
pressure range (two numbers separated by a dash in bar) [bar]1 - 10
temperature range (two numbers with hyphen) [°C]0 - 80
bodyanodized aluminium
coversaluminium casting
piston rodstainless steel AISI 303
sealspolyurethane + NBR
amortizationmechanical
