SKU
BE-BEKOMAT33

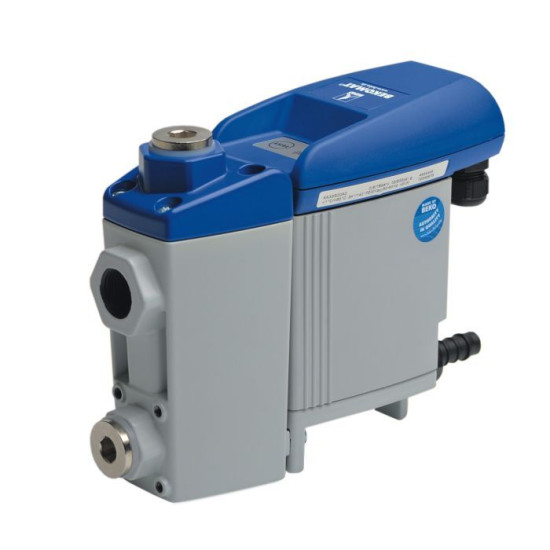

Electronic, automatic condensate drain BEKOMAT 33
Write Your Own Review
The new generation of BEKOMAT® drains is the result of over 25 years of BEKO TECHNOLOGIES experience. They are innovative solutions that bring invaluable benefits to users. BEKOMAT® 33 combines new solutions and continuous improvement of the design. Even greater reliability, quick and easy operation and no time inspections - BEKO TECHNOLOGIES has managed to achieve these goals with new market tubing that consists of only three parts connected with quick couplings.

Application:
- condensate drain from the pressure and expansion tank,
- from a refrigerant dryer,
- from an air cooler - free-standing or mounted in a compressor,
- condensate drain from the pneumatic system,
- condensate drain from air filters.
- condensate drain from cyclone separators.



Technical data:
Connection: 3 x 1/2 ″ internal thread,
Working pressure: min. 0.8 bar to max. 16 bar,
Working temperature: 1-60 degrees Celsius
Can be used for both oil-containing and oil-free condensate.
Performance:
- for a compressor with a maximum capacity of 10.0 m3 / min.
- for a refrigeration dryer with a maximum flow of 20.0 m3 / min.
- for compressed air filters with a flow of max. 100 m 3 / min.
Installation position: horizontal or vertical (control unit only horizontal)
Condensate drainage connection: 1/2 ″ connections female thread - 13 mm conduit.
Equipped with an auxiliary manual trigger,
Control: 230V / 1Ph / 50Hz
Weight: 1.65 kg.
More Information
SKUBE-BEKOMAT33
ProducentBeko
