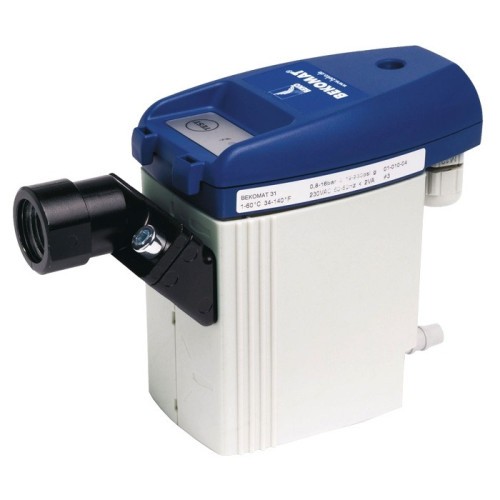

Electronic, automatic condensate drain BEKOMAT 31

The new generation of BEKOMAT® drains is the result of over 25 years of BEKO TECHNOLOGIES experience.

These are innovative solutions that bring users invaluable benefits.

BEKOMAT® 31 combines new solutions and continuous improvement of the design.

Even greater reliability, quick and easy operation and no time inspections - BEKO TECHNOLOGIES has managed to achieve these goals with new market tubing that consists of only three parts connected with quick couplings.

• condensate drain from the pressure and expansion tank
• from a refrigerant dryer
• from the air cooler - free-standing or mounted in the compressor
• condensate drain from the pneumatic system
• condensate drain from air filters
• condensate drain from cyclone separators

• Connection: 1/2 ″ internal thread
• Working pressure: min. 0.8 bar to max. 16 bar
• Working temperature: 1-60 ° C.
• Can be used for both oil-containing and oil-free condensate
• Performance:
  • for a compressor with a capacity of max. 2.5 m3 / min
  • for a refrigerant dryer with a maximum flow of 5.0 m3 / min
  • for compressed air filters with a flow of max. 25m3 / min
• Installation position: horizontal or vertical, (the possibility of changing the position of the handle vertical / horizontal, service unit only horizontally)
• Condensate drain connection: 1/4 ″ connections female thread - 8-10 mm conduit
• Equipped with an auxiliary manual trigger
• Control: 230V / 1Ph / 50Hz
• Weight: 0.8 kg
