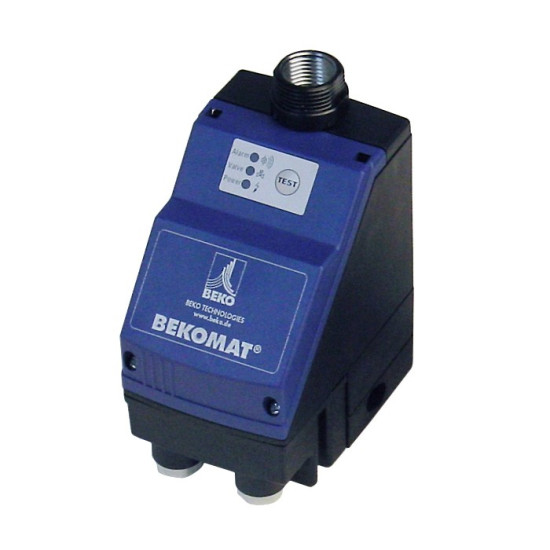

Electronic, automatic condensate drain BEKOMAT 20

The new generation of BEKOMAT® drains is the result of over 25 years of BEKO TECHNOLOGIES experience.

These are innovative solutions that bring users invaluable benefits.

BEKOMAT® 20 combines new solutions and continuous improvement of the design.

Even greater reliability, quick and easy operation and no time inspections - BEKO TECHNOLOGIES has managed to achieve these goals with new market tubing that consists of only three parts connected with quick couplings.

• condensate drain from air filters
• condensate drain from cyclone separators

• Connection: 1/2 ″ and 3/4 ″ internal thread
• Working pressure: min. 0.8 bar to max. 16 bar
• Working temperature: 1-60 ° C
• Can be used for both oil-containing and oil-free condensate
• Efficiency: for compressed air filters and separators with a flow of max. 40m³ / min
• Mounting position: only vertical
• Condensate drain connection: 1/4 ″ connection female thread - 8-10 mm conduit
• Equipped with an auxiliary manual trigger
• Control: 230V / 1Ph / 50Hz
• Weight: 0.8 kg
