EUR227.33 EUR184.82
SKU
KN-DR55

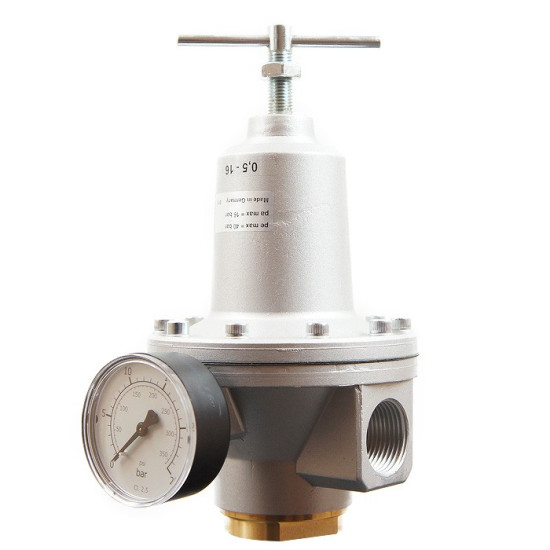

The kit includes a pressure gauge. Optionally, a version with a pressure of max. 25 bar supply and operating temperature -10 to + 80 ° C
Write Your Own Review
Technical data:
  • connection: 1 ″
  • flow: 11,000 l / min
  • max pressure: 40 bar
  • adjustment range: 0.5 ~ 10bar
  • optional adjustment range: 0.1 ~ 3 bar, 0.5 ~ 6 bar, 0.5 ~ 16 bar
  • 1/4 ″ pressure gauge connection
  • temperature range: -10 ~ 60 ° C
  • housing: die-cast zinc
  • weight: 2.2 kg
More Information
SKUKN-DR55
ProducentPneumatig
connectionG 1″
max. pressure [bar].40
range of adjustment0,5 - 10 bar
nominal flow at 7 bar [l/min]11000
temperature range (two numbers with hyphen) [°C]-10 - 60
maximum temperature [°C]60
manometerYes
casealuminum
