.Rectus

SKU: ZC-K432

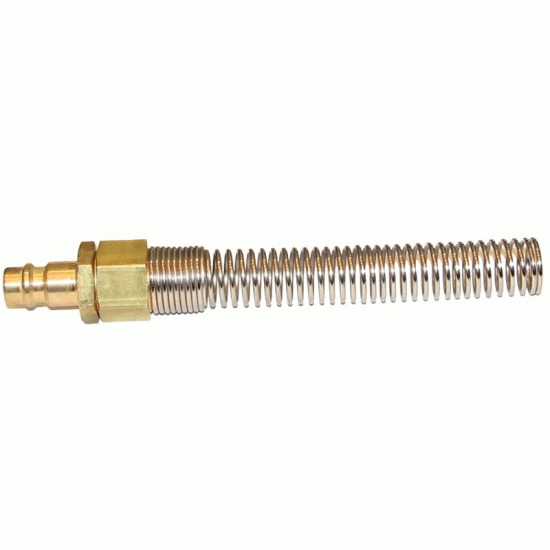

Quick-coupler tip for 8/6 mm hose

Dostępny Wysyłka: 1-2 dni robocze

Be the first to review this product

EUR 6.53 EUR 5.31

SKU

ZC-K432

Dostępność Duże stany magazynowe

Wsparcie techniczne Pomożemy dobrać rozwiązanie

Dokumentacja Karty katalogowe i certyfikaty

Szybka wysyłka Zamów dziś, wyślemy jutro

Quick Coupling Tip for 8/6 mm Hose

Skip to the end of the images gallery

Quick-coupler tip for 8/6 mm hose

Skip to the beginning of the images gallery

pressure range (two numbers separated by a dash in bar) [bar] 0 - 35

DN 7,2

hose Ø 8 × 6 mm

material brass OT58

rectus series 26

Quick-coupler tip for 8/6 mm hose

Quick coupler type: TYP26 NW 7.2
Hose outer diameter: 8 mm.
Hose inner diameter: 6 mm.
Material: brass OT58
Temperature: 0 to +80 ° C (for dry air -20 ° C)
Installation: in any position
Working pressure: 0 - 35 bar
Most often used for spiral ducts in production and workshops.

Quick-release assemblies are used wherever it is required, for technical or safety reasons, to frequently disconnect parts of the pneumatic circuit. The quick-disconnect unit enables these operations to be carried out quickly and without loss of pressure in the system.

kompaktowa budowa
wysoka wydajność przepływu
szeroki zakres ciśnień
niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKU	ZC-K432
Producent	.Rectus
rectus series	26
DN	7,2
hose	Ø 8 × 6 mm
material	brass OT58
pressure range (two numbers separated by a dash in bar) [bar]	0 - 35

Download

Download dimensions

More Information
SKU	ZC-K432
Producent	.Rectus
rectus series	26
DN	7,2
hose	Ø 8 × 6 mm
material	brass OT58
pressure range (two numbers separated by a dash in bar) [bar]	0 - 35
