EUR 54.35 EUR 44.19
SKU
YPC-YMV410-1RP

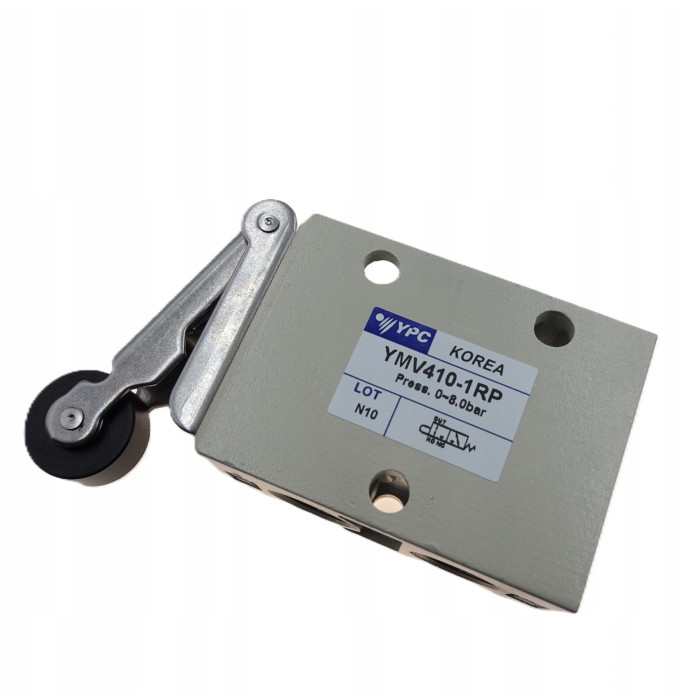

Mechanical valve YMV410-1RP
Write Your Own Review
Technical data:
- Function: 3/2
- Way of return: spring
- Connection: 1/4 ″
- Width: 25 mm
- Switch type: plastic two-way roller
- Flow: 700 l / min (5 bar)
- Medium: compressed air and inert gases
- Pressure: 0 ~ 8 bar
- Temperature range: 5 ~ 60 ° C
- Lubrication: use ISO VG32 #
- Valve housing: die-cast aluminum
- Body: aluminum
- Seals: rubber (NBR)
- Spring: stainless steel
- Button parts: stainless steel, POM
SKU | YPC-YMV410-1RP |
---|---|
Producent | YPC |
dimensions (width) [mm]. | 25 |
function | 3/2 |
connection | G 1/4″ |
return method | spring |
nominal flow at 7 bar [l/min] | 700 |
pressure range (two numbers separated by a dash in bar) [bar] | 0 - 8 |
temperature range (two numbers with hyphen) [°C] | 5 - 60 |
max. pressure [bar]. | 8 |
