    Pneumatig
    SKU: AGD-F-FR02

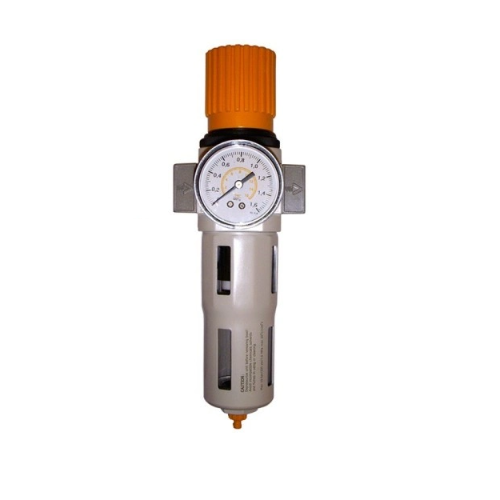

    1/4 ″ MINI reducer filter

    In stock Dispatch: 1-2 business days
    Be the first to review this product
    EUR 89.24 EUR 72.55
    SKU
    AGD-F-FR02
    Availability In stock
    Technical support We help you choose the right solution
    Documentation Datasheets and certificates
    Fast dispatch Dispatch: 1-2 business days
    A pressure gauge is included
    1/4 ″ MINI reducer filter
    connection 1/4″
    max. pressure [bar]. 16
    pressure range (two numbers separated by a dash in bar) [bar] 0.5 - 12
    range of adjustment 0.5 - 12
    nominal flow at 7 bar [l/min] 1400
    medium compressed air

    1/4 ″ MINI reducer filter

    Technical data:
    • connection: 1/4 ″
    • max. flow: 1400 l / min
    • working pressure: 1 - 16bar
    • adjustment range: 0.5 - 12bar
    • pressure gauge connection: 1/8 ″
    • filtration: 40 µm
    • temperature range: 0 ~ 60 ° C
    • condensate container: 22 ml
    • housing: die-cast zinc
    • diaphragm: NBR
    • kompaktowa budowa
    • wysoka wydajność przepływu
    • szeroki zakres ciśnień
    • niezawodna praca w automatyce przemysłowej

    Dane techniczne

    More Information
    SKUAGD-F-FR02
    ProducentPneumatig
    connection1/4″
    max. pressure [bar].16
    pressure range (two numbers separated by a dash in bar) [bar]0.5 - 12
    nominal flow at 7 bar [l/min]1400
    range of adjustment0.5 - 12
    maximum temperature [°C]60
    temperature range (two numbers with hyphen) [°C]0 - 60
    installationvertical
    manometerYes
    casedie-cast zinc
    filtration [µm]40
    mediumcompressed air
    More Information
    SKUAGD-F-FR02
    ProducentPneumatig
    connection1/4″
    max. pressure [bar].16
    pressure range (two numbers separated by a dash in bar) [bar]0.5 - 12
    nominal flow at 7 bar [l/min]1400
    range of adjustment0.5 - 12
    maximum temperature [°C]60
    temperature range (two numbers with hyphen) [°C]0 - 60
    installationvertical
    manometerYes
    casedie-cast zinc
    filtration [µm]40
    mediumcompressed air
