    Pneumatig
    SKU: AGD-F-FR04

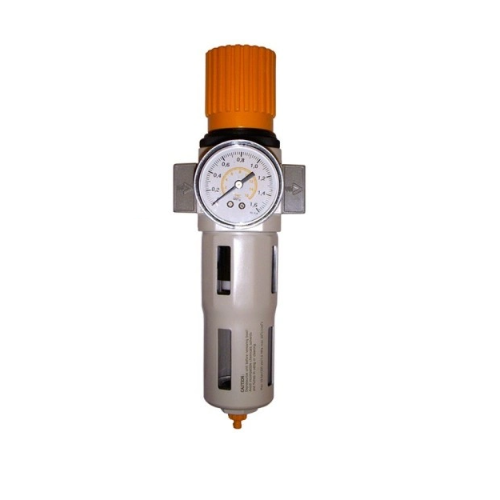

    1/2 ″ MIDI reducer filter

    In stock Dispatch: 1-2 business days
    Be the first to review this product
    EUR 81.71 EUR 66.43
    SKU
    AGD-F-FR04
    Availability In stock
    Technical support We help you choose the right solution
    Documentation Datasheets and certificates
    Fast dispatch Dispatch: 1-2 business days
    Pressure gauge included, replacement for Festo 173789
    1/2 ″ MIDI reducer filter
    connection G 1/2″
    max. pressure [bar]. 16
    pressure range (two numbers separated by a dash in bar) [bar] 0.5 - 12
    range of adjustment 0.5 - 12
    nominal flow at 7 bar [l/min] 3400
    maximum temperature [°C] 60

    1/2 ″ MIDI reducer filter

    ​Filtr-reduktor AGD-F-FR04 to urządzenie przeznaczone do oczyszczania i regulacji ciśnienia sprężonego powietrza w systemach pneumatycznych.​

    Główne cechy i parametry:

    • Przyłącze: G 1/2″​
    • Maksymalne ciśnienie robocze: 16 bar​
    • Zakres ciśnienia: 0,5–12 bar​
    • Przepływ: 3400 l/min​
    • Zakres temperatur pracy: 0–60°C​
    • Obudowa: cynk odlewany ciśnieniowo​
    • Filtracja: 40 µm​
    • Manometr: w zestawie
    • kompaktowa budowa
    • wysoka wydajność przepływu
    • szeroki zakres ciśnień
    • niezawodna praca w automatyce przemysłowej

    Dane techniczne

    More Information
    SKUAGD-F-FR04
    connectionG 1/2″
    max. pressure [bar].16
    pressure range (two numbers separated by a dash in bar) [bar]0.5 - 12
    nominal flow at 7 bar [l/min]3400
    range of adjustment0.5 - 12
    maximum temperature [°C]60
    temperature range (two numbers with hyphen) [°C]0 - 60
    installationvertical
    manometerYes
    filtration [µm]40

    Download

    No downloads...
    More Information
    SKUAGD-F-FR04
    connectionG 1/2″
    max. pressure [bar].16
    pressure range (two numbers separated by a dash in bar) [bar]0.5 - 12
    nominal flow at 7 bar [l/min]3400
    range of adjustment0.5 - 12
    maximum temperature [°C]60
    temperature range (two numbers with hyphen) [°C]0 - 60
    installationvertical
    manometerYes
    filtration [µm]40
    No downloads...
