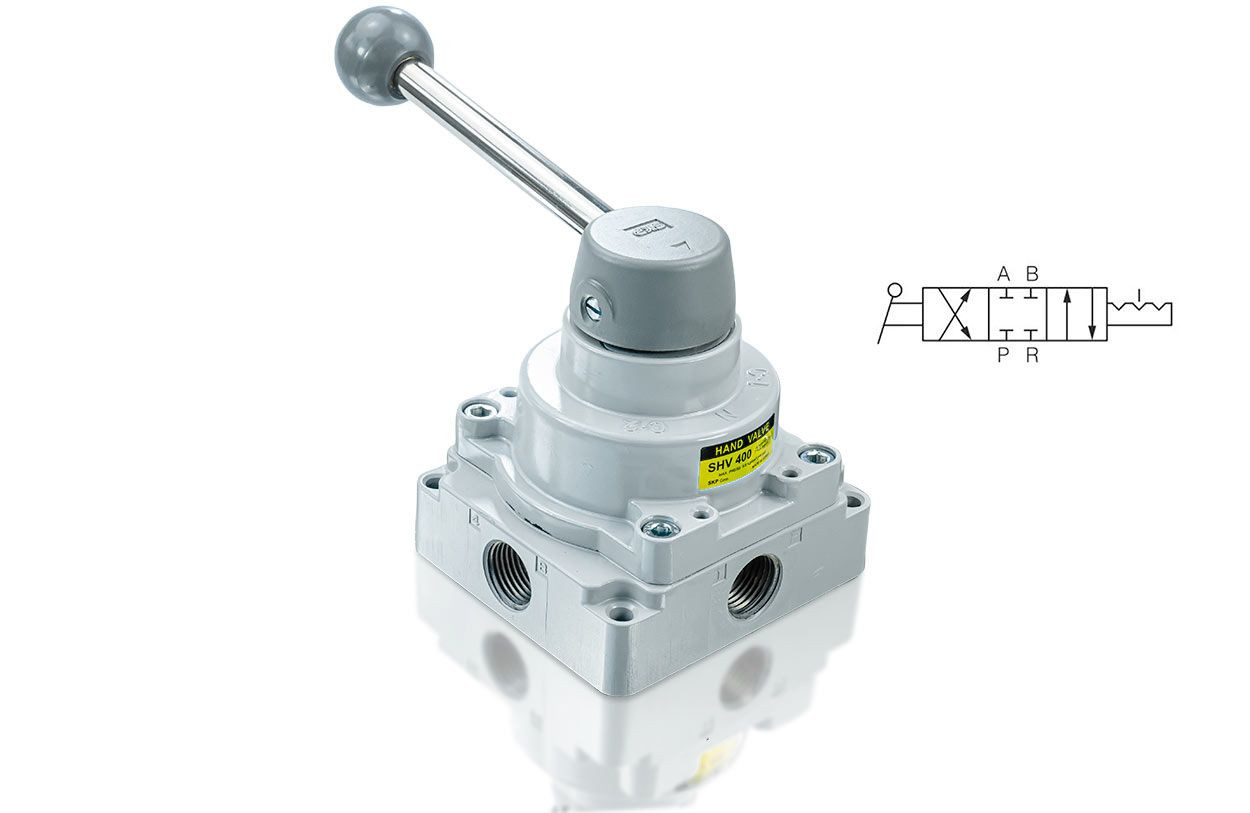

Valve Lever Horizontal 4/3 1/2 "

Specification

• Horizontal lever valve 4/3 1/2 "
• Function: 4/3 middle position all roads closed
• Return method: none
• Connection: 1/2 ″
• Switch Type: Lever
• Flow: 4000 l / min (6 bar)
• Medium: compressed air and inert gases
• Pressure: 0 ~ 10 bar
• Temperature range: -5 ~ 60 ° C
• Lubrication: use ISO VG32 #

Construction:

• Valve housing: die-cast aluminum
• Body: aluminum
• Seals: rubber (NBR)
• Lid: die-cast zinc
• Upper footplate: die-cast aluminum
• Lower footplate: in die-cast zinc
