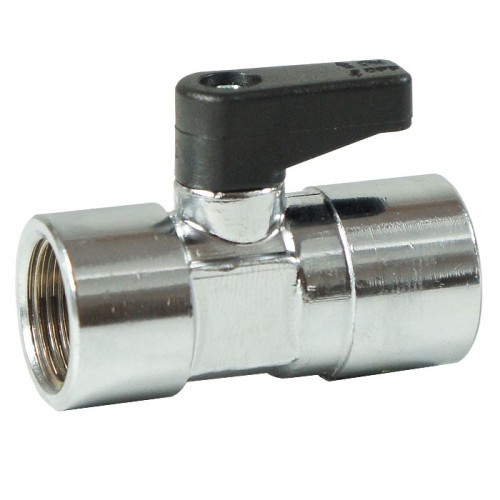

Technical data:
- Connection: 1/8 "WW
- Max pressure: 20 bar
- Temperature: -20 - 80 ° C
- Body: chrome plated brass Standard UNI EN 12165 CW617N
- Ball: brass Standard UNI EN 12165 CW614N
- Lever: PA 66
- Screw: steel
- Spindle: brass Standard UNI EN 12164 CW614N
- Ball seal: PTFE
- O-Ring: NBR 70
| SKU | SZ-ZKA-01WW |
|---|---|
| Producent | Pneumatig |
| connection | G 1/8″ |
| thread type | 2 internal |
| medium | compressed air, inert gases, water |
| temperature range (two numbers with hyphen) [°C] | -20 - 80 |
| max. pressure [bar]. | 20 |
