.Rectus
SKU: SZ-F21-08

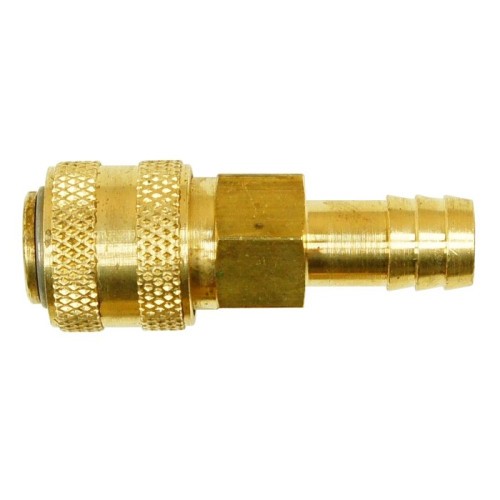

Szybkozłączka TYP21 na wąż 8 mm

In stock Dispatch: 1-2 business days
EUR 11.60 EUR 9.43
SKU
SZ-F21-08
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days

Szybkozłączka na wąż 8 mm, kompatybilne z Rectus typ 21

pressure range (two numbers separated by a dash in bar) [bar] 0 - 35
temperature range (two numbers with hyphen) [°C] 0 - 80
DN 5
hose Ø 8 mm
installation any position
material brass OT58

Szybkozłączka TYP21 na wąż 8 mm

  • Typ szybkozłączki: TYP21 NW 5
  • Wąż: 8 mm
  • Materiał: mosiądz OT58
  • Temperatura: od 0 do +80 °C
  • Instalacja: w dowolnym położeniu
  • Ciśnienie robocze: 0 - 35 bar

Szybkozłączki występują wszędzie tam, gdzie wymagane jest ze względów technicznych lub bezpieczeństwa częste rozłączanie części obwodu pneumatycznego. Zespół szybkozłączny umożliwia wykonanie tych operacji szybko i bez strat ciśnienia w układzie.

  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUSZ-F21-08
Producent.Rectus
rectus series21
DN5
hoseØ 8 mm
materialbrass OT58
temperature range (two numbers with hyphen) [°C]0 - 80
pressure range (two numbers separated by a dash in bar) [bar]0 - 35
installationany position
More Information
SKUSZ-F21-08
Producent.Rectus
rectus series21
DN5
hoseØ 8 mm
materialbrass OT58
temperature range (two numbers with hyphen) [°C]0 - 80
pressure range (two numbers separated by a dash in bar) [bar]0 - 35
installationany position
