EUR 11.70 EUR 9.51
SKU
SZ-F21-06

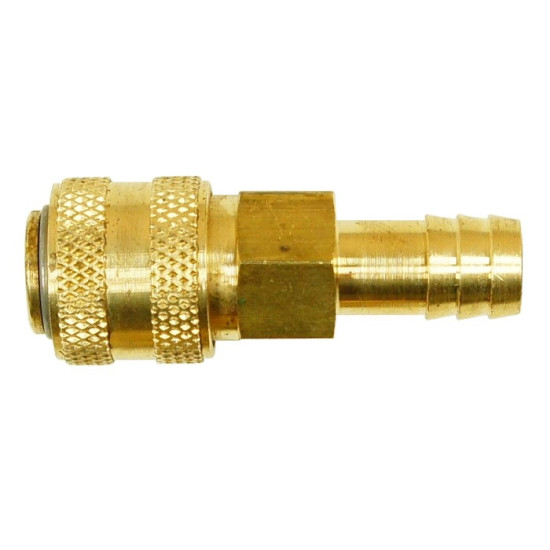

Quick coupling for 6 mm hose, compatible with Rectus type 21
Write Your Own Review
- Quick coupler type: TYP21 NW 5
- Hose: 6 mm
- Material: brass OT58
- Temperature: 0 to +80 ° C
- Installation: in any position
- Working pressure: 0 - 35 bar
Quick couplings are present wherever it is required, for technical or safety reasons, to frequently disconnect parts of the pneumatic circuit. The quick-disconnect unit enables these operations to be carried out quickly and without loss of pressure in the system.
SKU | SZ-F21-06 |
---|---|
Producent | .Rectus |
rectus series | 21 |
DN | 5 |
hose | Ø 6 mm |
material | brass OT58 |
temperature range (two numbers with hyphen) [°C] | 0 - 80 |
pressure range (two numbers separated by a dash in bar) [bar] | 0 - 35 |
installation | any position |
