SKU: C-D-040-0060A

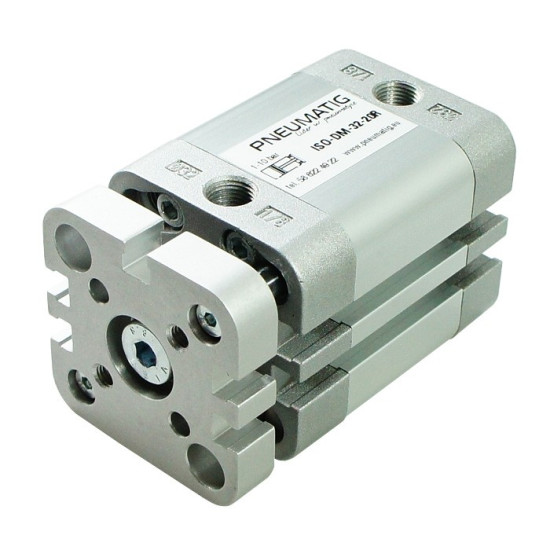

Compact cylinder 40 × 60 anti-twist protection

In stock Dispatch: 1-2 business days
EUR 135.13 EUR 109.86
SKU
C-D-040-0060A
Availability In stock
Technical support We help you choose the right solution
Documentation Datasheets and certificates
Fast dispatch Dispatch: 1-2 business days
Compact cylinder with a diameter of 40 mm and a stroke of 60 mm with anti-twist protection
connection G 1/8″
pressure range (two numbers separated by a dash in bar) [bar] 1 - 10
temperature range (two numbers with hyphen) [°C] -10 - 70
stroke of actuator [mm] 60
piston diameter [mm] 40
action double-sided

Compact cylinder 40 × 60 anti-twist protection

  • Piston diameter: 40 mm
  • Actuator stroke: 60 mm
  • Connection: G 1/8 ″
  • Operation: two-sided
  • Maximum pressure: 10 bar

This compact cylinder model has a diameter of 40 mm and has a maximum stroke of 60 mm. It is a double-acting cylinder. This cylinder model has a stainless steel piston rod and polyurethane and NBR seals. Double-sided mechanical shock absorption guarantees smooth operation (no noise caused by metal colliding with metal) and extends the service life of the device. The actuator housing is made of anodized aluminum, while the covers are made of die-cast aluminum.

Our actuators also have a magnetic ring and a special groove, which allows the use of piston position sensors from our offer . The actuator accessories available from us can be used with the actuator .

  • kompaktowa budowa
  • wysoka wydajność przepływu
  • szeroki zakres ciśnień
  • niezawodna praca w automatyce przemysłowej

Dane techniczne

More Information
SKUC-D-040-0060A
ProducentPneumatig
piston diameter [mm]40
stroke of actuator [mm]60
connectionG 1/8″
actiondouble-sided
pressure range (two numbers separated by a dash in bar) [bar]1 - 10
temperature range (two numbers with hyphen) [°C]-10 - 70
bodyanodized aluminium
coversaluminium casting
sealspolyurethane + NBR
amortizationmechanical

Download

No downloads...
More Information
SKUC-D-040-0060A
ProducentPneumatig
piston diameter [mm]40
stroke of actuator [mm]60
connectionG 1/8″
actiondouble-sided
pressure range (two numbers separated by a dash in bar) [bar]1 - 10
temperature range (two numbers with hyphen) [°C]-10 - 70
bodyanodized aluminium
coversaluminium casting
sealspolyurethane + NBR
amortizationmechanical
