72,35 EUR 58,82 EUR
SKU
YPC-SF5701-IL

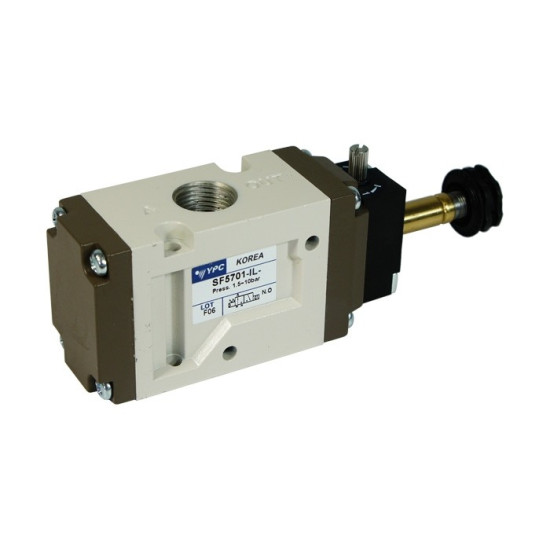

Vanne universelle SF5701-IL
Rédigez votre propre commentaire
Données techniques:
- Fonction : 3/2 normalement ouvert
- Connexion : 3/8″
- Manière de retour: air + ressort
- Largeur : 32 mm
- Débit : 2000 l/min (5 bars)
- Fluide : air comprimé et gaz inertes
- Pression : 1,5 ~ 10 bars
- Plage de température : 5 ~ 60°C
- Temps de réponse : 30 ms (5 bars)
- Fréquence de fonctionnement : 5c/sec
- Lubrification : non requise (utiliser ISO VG32#)
- Commande manuelle : interrupteur
- Corps de soupape : aluminium
- Corps de bobine : aluminium
- Joints : caoutchouc NBR
- Ressort : acier inoxydable
- Couvercle : zinc moulé sous pression
- Pièces pilotes : nylon renforcé de fibre de verre
- Induit : acier inoxydable
- Joint d'armature : élastomère
SKU | YPC-SF5701-IL |
---|---|
Producent | YPC |
wymiary (szerokość) [mm] | 32 |
funkcja | 3/2 norm. otwarty |
przyłącze | G 3/8″ |
metoda powrotu | powietrze + sprężyna |
przepływ nominalny przy 7 bar [l/min] | 2000 |
zakres ciśnienia (dwie liczby oddzielone myślnikiem w bar) [bar] | 1.5 - 10 |
zakres temperatur (dwie liczby z myślnikiem) [°C] | 5 - 60 |
ciśnienie max. [bar] | 10 |
medium | sprężone powietrze, gazy obojętne |
rodzaj sterowania | wewnętrzny pilot |
przesterowanie ręczne | dźwignia |
czas reakcji (5 bar) [ms] | 30 |
częstotliwość pracy [c/s] | 5 |
ekwiwalentna pow. przelotu [mm²] | 36 |
